AGL 54 Glass Laminator

Advanced Greig Laminators, Inc (AGL) Deforest, WI – AGL’s 54 inch glass laminator is designed for the glass panel industry which includes refrigerator doors, anti-fog applications as well as various solar industry applications. This is a heavy duty laminator designed specifically for these high production facilities. This machine features a 54 inch roll face Hypalon covered laminating bottom nip roll with a complimenting chrome plated top nip roll both of which are equipped with internal electric heat and controls for ambient to 320 degrees Fahrenheit. The product unwind and rewind assemblies feature airshaft assemblies with automatic transducer tension control. The film unwind stations feature cantilevered loading and unloading shafts. Safety features include a nip protection circuit prior to the nip, as well as emergency stop switches at all four corners of the machine. Incorporated into this laminator is a proprietary floating infeed system to prevent scratching the glass panels. This machine features 3-30 fpm operating machine speeds.

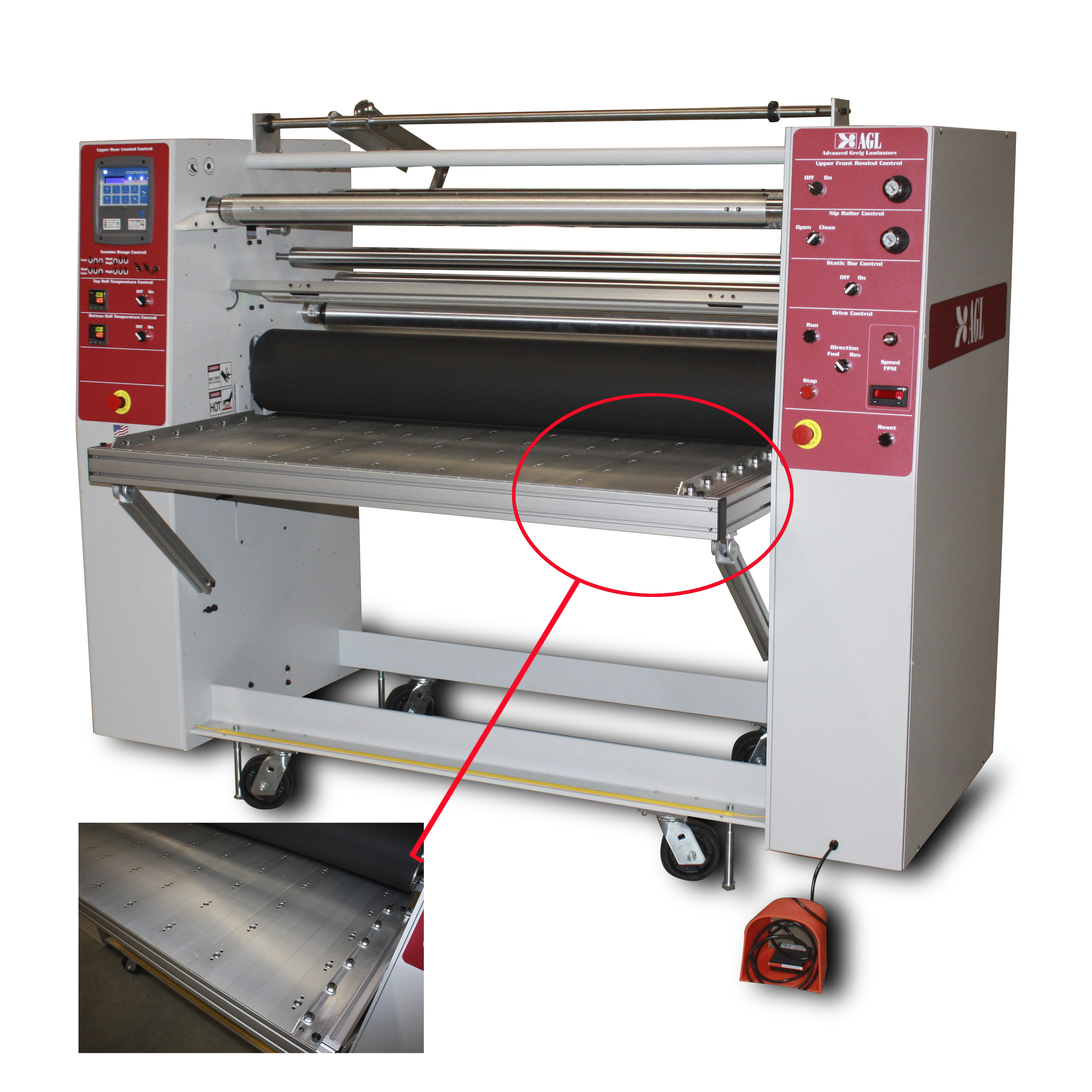

AGL 54 Glass Laminating machine and a close up of the ball bearing easy glide feed table.

In many laminating markets standard run-of-the-mill pressure sensitive/thermal mounting presses do not meet specific laminating requirements. Advanced Greig Laminators, Inc. (AGL) has answered this dilemma with an industrial laminating product line that can be customized and configured to specific customer requirements. Advanced Greig Laminators, Inc. (AGL) specializes in custom designed industrial laminators. We encourage customers to combine process requirements into custom machine configurations. By utilizing standard subassembly components such as unwind stations, rewind station, nip roller assemblies and pull rollers in numerous widths (14”, 36”, 40”, 64”, 80”, 110”) AGL can create a custom laminator in a cost-effective fashion.

High performance laminators from a name you have trusted for over 65 years. Equipment design for the Wide Format Digital Imaging Market, or for Custom Industrial Applications, we have a solution for you. For more information contact AGL at 1-800-276-2664.
