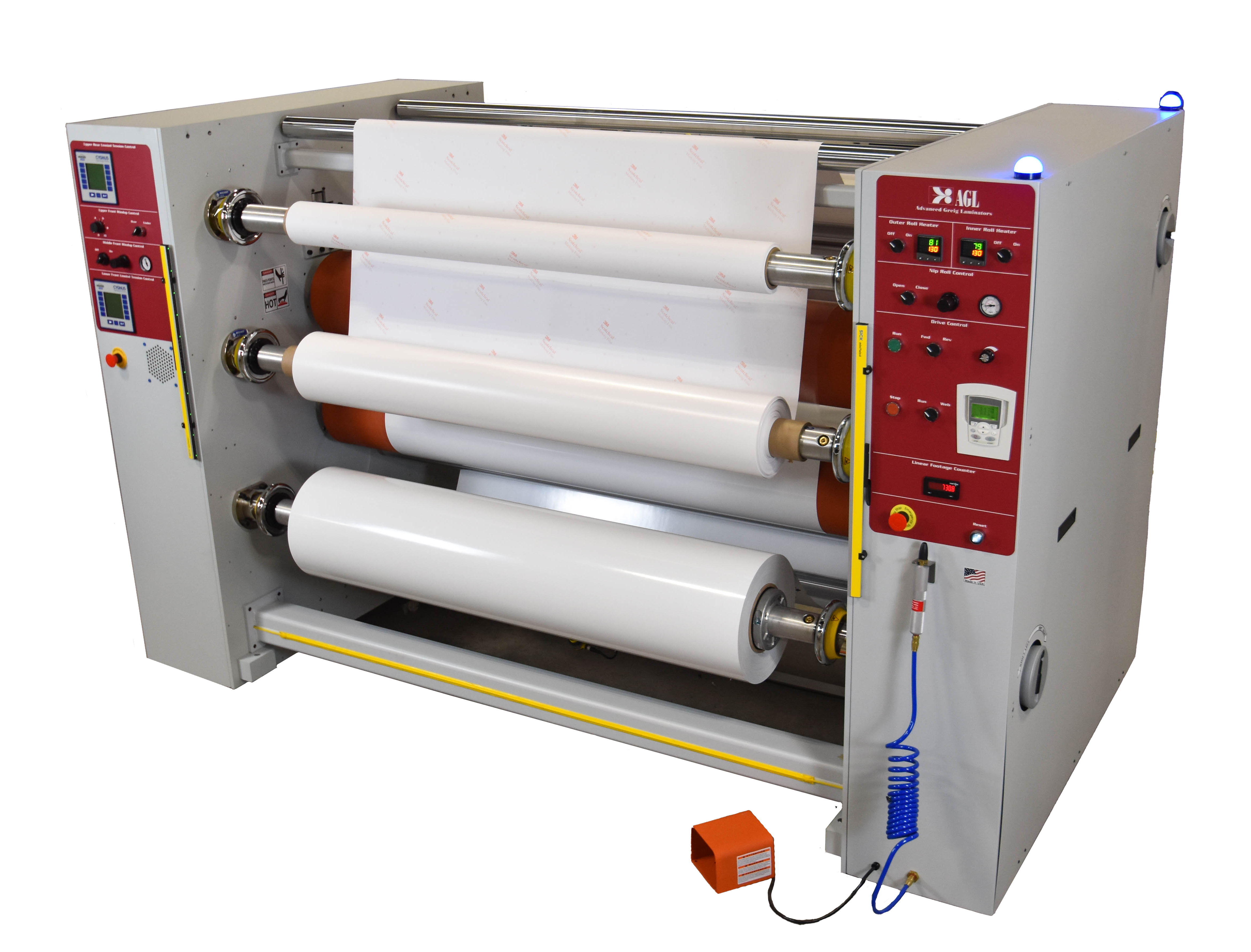

AGL 72 Industrial Vinyl Laminator

The custom built AGL 72 vinyl laminator combines the speed, capacity and over-laminating technology to convert any type of material with maximum productivity, reliability and return on investment. The unique feature detailed in this machine is the pre-mask winder in the upper front part of the laminator. The function of this laminator is to take large rolls (15 inch diameter) of printed cast vinyl media, overlaminates them while removing the release liner as well as the casting sheet on the overlaminate.

The other features of this machine include:

  • Automatic closed loop tension control
  • Heated 10 inch diameter nip rolls, top and bottom
  • Machine speeds of 0 – 100 fpm
  • Anti-Static removal systems
  • Lug style airshafts at all locations
  • Digital footage counter detailing linear footage laminated through the machine
  • Roll diameter sensing and taper tension control for rewinds
  • End of roll diameter sensing that senses when the machine is nearing the end of a roll and       thereby slowing the machine to a stop. This feature prevents web breaks saving a costly re-webbing process.
  • Internal heat settings for both nip rolls
  • Nip roll activation and pressure settings
  • Automatic transducer tension controlled brake tension at all unwind stations
  • Automatic roll diameter sensing for taper controlled rewind clutch tension
  • Pull roll activation and pressure settings
  • Light curtain safety system


High performance laminators from a name you have trusted for over 65 years. Equipment design for the wide format Digital Imaging Market, or for Custom Industrial Applications, we have a solution for you. For more information contact AGL at 1-800-276-2664.
