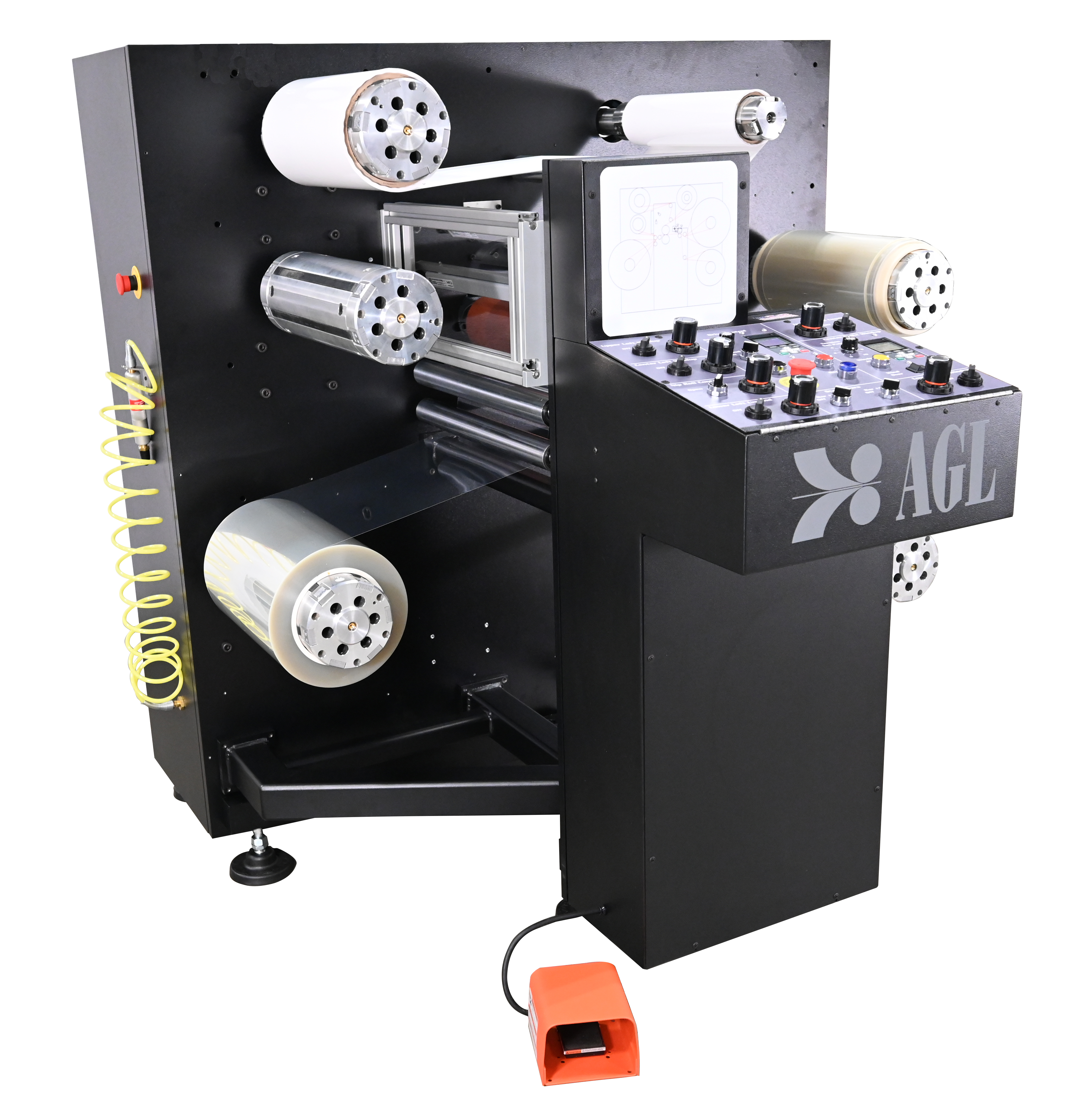

AGL 20 Inch Cantilevered Laminator

AGL’s would like to remind all of our customers that we design and build a variety of custom laminator every year. The latest design is AGL’s newest cantilevered 20-inch robust laminator featuring a silicon covered top nip roll, as well as a silicon bottom nip roll. These rolls incorporate AGL’s proprietary nip roll design with concentrically ground non-crowned nip rolls. All of the supply stations feature AGL’s newest cantilevered design that allows the machine operator to quickly deflate an air-shaft and replace an empty core with a new roll of laminate. This machine incorporates a trimming system that removes an adjustable amount from each edge of the laminating material and winding up the final product. Excess trim is wound up on a separate winding shaft for easy disposal. A motorized side-lay assembly allows the operator to quickly and precisely position the over-laminating film to the product prior to lamination.


Safety features include a nip protection circuit prior to the nip, as well as emergency stop switches at all four corners of the machine. This machine features .5 - 50 fpm operating machine speeds. Other standard features include:

  • 2 Cantilevered unwind supply shaft stations
  • 1 Cantilevered release liner windup station
  • 1 Cantilevered product windup station
  • 1 Cantilevered trim removal windup station
  • 1 element style air shafts for 3-inch diameter cores
  • 5 element style air shafts for 6-inch diameter cores
  • Pneumatically controlled film tensioning system
  • Variable Speed Control .5 to 50 fpm
  • Motorized laminate side-lay assembly
  • Hard guard with interlock switch and safety relay

In many laminating markets standard run-of-the-mill pressure sensitive/thermal mounting presses do not meet specific laminating requirements. Advanced Greig Laminators, Inc. (AGL) has answered this dilemma with an industrial laminating product line that can be customized and configured to specific customer requirements. Advanced Greig Laminators, Inc. (AGL) specializes in custom designed industrial laminators. We encourage customers to combine process requirements into custom machine configurations. By utilizing standard subassembly components such as unwind stations, rewind station, nip roller assemblies and pull rollers in numerous widths (14”, 36”, 40”, 64”, 80”, 110”) AGL can create a custom laminator in a cost-effective fashion.

High performance laminators from a name you have trusted for over 65 years. Equipment design for the wide format Digital Imaging Market, or for Custom Industrial Applications, we have a solution for you. For more information contact AGL at 1-800-276-2664.
