AGL Builds Laminators for Any Size Applications

AGL 14 compact laminator

The AGL 14 industrial laminator is designed to laminate several layers of medical patch products in a clean room environment. This laminators prominent features include a compact design with a maximum roll face of 14 inches, an aluminum infeed table with RH and LH infeed guides and a pneumatically controlled nip roll assembly with removable spacer system for precise nip opening control. The “High Temp” silicone top and bottom laminating rolls allow for ambient to 400 degrees Fahrenheit. This heated nip roll design incorporates concentrically ground top and bottom nip rolls that do not deflect and provides consistent heated downward pressure allowing this medical company to produce repeatable medical patches for the critical medical industry.

Standard features for the AGL 14 laminator include:

  • Two 4.38-inch diameter heated laminating rollers – top and bottom
  • Medical grade silicone rubber on the nip rolls
  • Pneumatically controlled nip roll assembly with a 1.0-inch nominal opening
  • Adjustable spacer system with custom shims in 1.2 millimeter increments
  • Spring blade core chucks for 3.0-inch ID cores and roll savers
  • Aluminum infeed table with RH and LH infeed guides
  • Aluminum outfeed table
  • Variable Speed Control from .5 to 20 fpm
  • Motor control panel with forward/reverse operation and jog functions

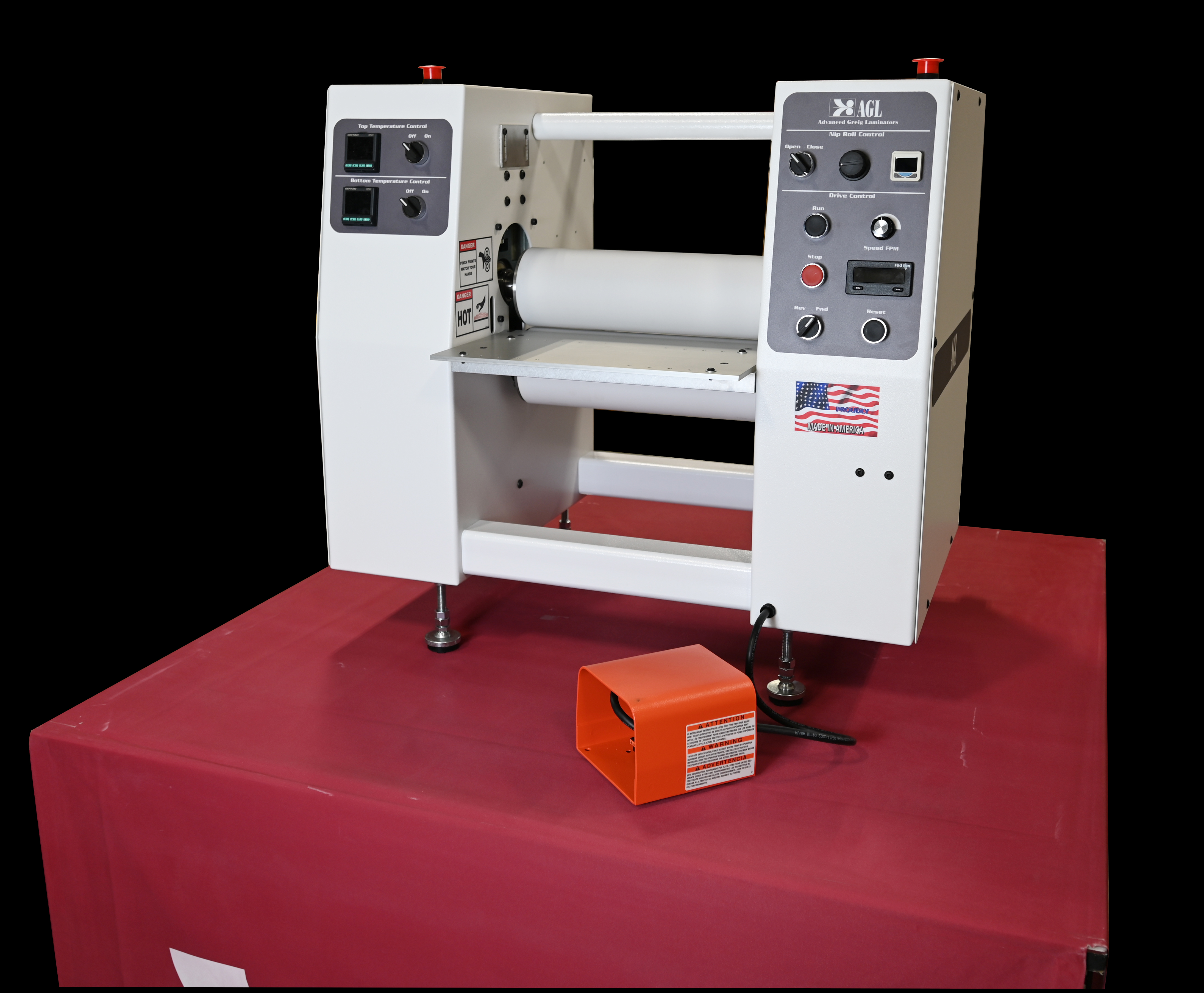

AGL 14 Laminator

High performance laminators from a name you have trusted for over 65 years. Equipment design for the wide format Digital Imaging Market, or for Custom Industrial Applications, we have a solution for you. For more information contact AGL at 1-800-276-2664.
